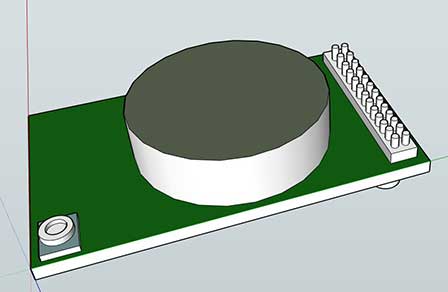

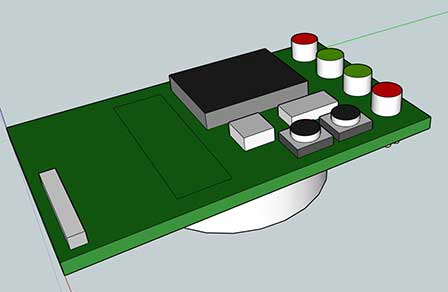

To serve some of today's needs, BEENETIC Systems has designed and manufactured a small Zigbee module (identifier BEETAG1322X1), with reduced functionality to meet production, test and interface requirements with client systems.

We have designed this system with tje will to minimize production costs : it is therefore available at a competitive price (consult us).





An overview of the features of this module :

  • Compact : L<30mm, l<30mm, h<25mm
  • Standalone : Button cell (possibility of external power supply)
  • Compliant with the full IEEE 802.15.4 standard (integrating the entire Freescale BeeStack protocol)
  • 2.4GHz band
  • RF power 3dBm
  • Sensibility -95 dBm
  • 26MHz ARM7 microcontroller including hardware acceleration for IEEE 802.15.4
  • AES 128bit Encryption
  • 128 KB Flash
  • 96 KB RAM
  • 2 x Quartz for acurate timing management (24MHz + 32767KHz)
  • 4 x LEDs including 2 configurable by software
  • 2 x Buttons including 1 software configurable
  • 2 x Series connections (UART)
  • Up to 32 configurable digital inputs/outputs (GPIO, interrupts)
  • 1 x SPI bus
  • 8 x analog inputs (12-bits ADC)
  • 1 x I2C bus
  • 4 x Timers/Counters (PWM)
  • JTAG Development Connector
  • Generic connector for access to all devices using an external adapter (application)



The BEETAG1322X1 can be used in several configurations. The two main one are the following

  • Autonomous module (router, tag)
    • Battery powered (several months or even years of autonomy depending on the case of use)
    • No interface connected
    • Plays a role of transmission of information along the network, or identification module (in the manner of an RFID tag)
  • Radio card module in an application
    • Plays the role of radiofrequency card
    • Connected to an electronic board wich will serve as an application (signal conversion, signal capture, action on the environment,etc.)
    • Reading of signals (voltage, current,...)
    • Detection of events (levels, interruptions,...)
    • Generation and capture of periodic signals (clocks, PWM)
    • External memory management (RAM, Flash)
    • Communication with external equipment (RS485, RS232, SPI, I2C)
    • Keyboard playback
    • Etc...
